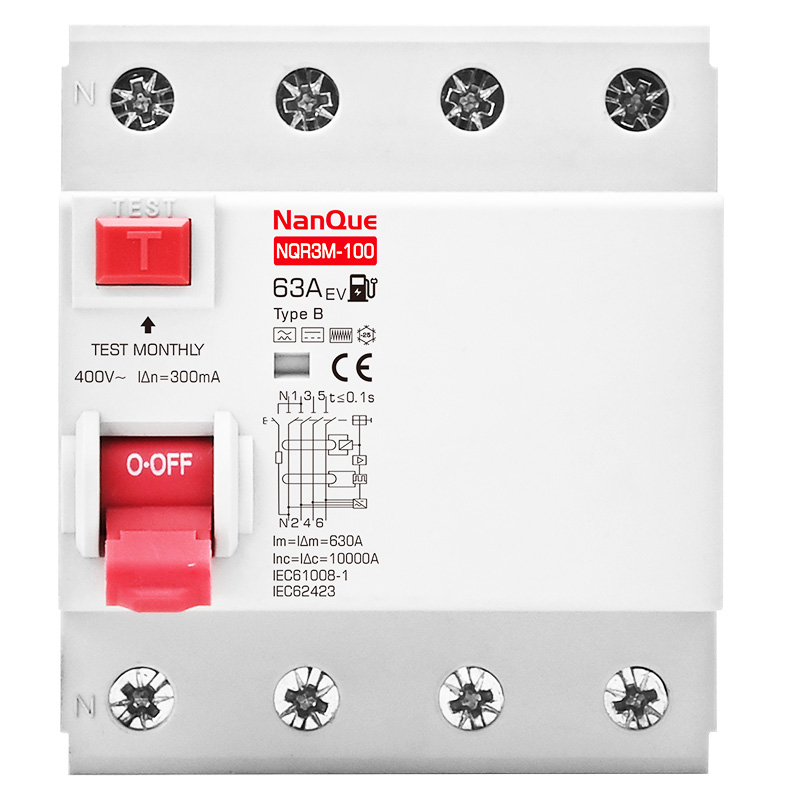

NQR3M-100
Type B RCCB
Type B RCCB/RCD Charging Pile Circuit Breaker DC RCD New Energy Electromagnetic Breaker AC110V/230V/400V 10mA/15mA/30mA/50mA/100mA/300mA/500mA
  • Introduction
  • Files
  • Pictures
  • FAQ

    Model

    NQR3M-100

    Name

    Residual current operated protective device (RCD)(RCCB)

    Protection

    Residual current

    Types of trip devices

    Electromagnetic

    Poles

    2P



    4P



    Voltage

    120V, 230V

    240V, 400V

    Rated frequency

    50/60Hz

    Insulation voltage Ui

    500V

    Current

    10A, 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A

    Trip type

    Type B/Type B+EV

    Leakage current

    10mA, 30mA(default), 75mA, 100mA, 300mA

    Break time under I△n

    ≤0.1s

    Rated impulse withstand voltage(1.5/50) Uimp

    4000V

    Dielectric test voltage at ind.Freq. for 1min

    2.5kV

    Electrical life

    2,000Cycles

    Mechanical life

    4,000Cycles

    Installation method

    DIN Rail Mounting
